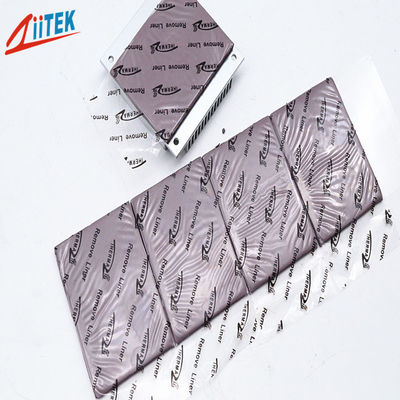

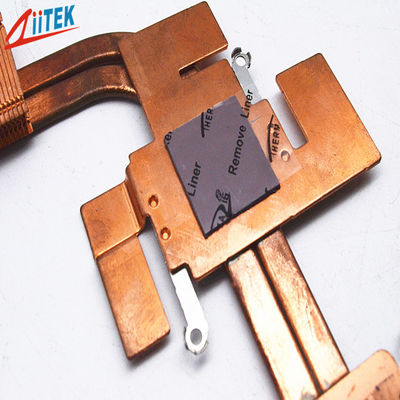

Ultra High Thermal Conductivity Gap Filler Pad For AI Servers
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
The TIF®600P Series is a well-balanced,general-purpose thermal pad. It offers excellent thermal conductivity and moderate hardness. This balanced design provides both good surface conformity and excellent ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between costand performance.
Features:
> High thermal conductivity: 6.0W/mK
> Good flexibility and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> Available in varies thicknesses
> Broad range of hardnesses available
> Outstanding thermal performance
Applications
> AI Servers, Inverters, Telecom Devices
> Power tools
> Network communication products
> Electric vehicle batteries Computer CPU/GPU Cooling
> New energy vehicle power systems
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> Routers
> Medical Devices
| Typical Properties of TIF®600P Series |
| Property |
Value |
Test method |
| Color |
Garnet |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
3.4 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.020~0.030
(0.50~0.75)
|
0.040~0.200 (1.0~5.0) |
ASTM D374 |
| Hardness |
60 Shore 00 |
45 Shore 00 |
ASTM 2240 |
| Recommended Operating Temperature |
-40 to 200℃ |
****** |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant |
4.5 MHz |
ASTM D150 |
| Volume Resistivity |
＞4.2X1012 Ohm-meter |
ASTM D257 |
| Flame rating |
V-0 |
UL 94 (E331100) |
| Thermal conductivity |
6.0 W/m-K |
ASTM D5470 |
|
6.0 W/m-K
|
ISO22007 |
Product Specifications
Standard Thickness: 0.020"(0.5 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
Notes: FG (Fiberglass) provides enhanced strength,
suitable for materials with thicknesses of 0.010" to 0.020" (0.25mm to 0.50mm)
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
